BendixKing AeroTouch
BendixKing AeroTouch

AeroVue Touch

Fast, simple and powerful flight display with superior craftsmanship

AeroVue Touch was awarded the 2018 Good Design Award in the Transportation category, earning a place among designs from other big names in the technology and transportation industries.

This low cost, high performance top display supplants all previous generations of flight displays for certified aircraft.

AFFORDABLE TOP PERFORMANCE

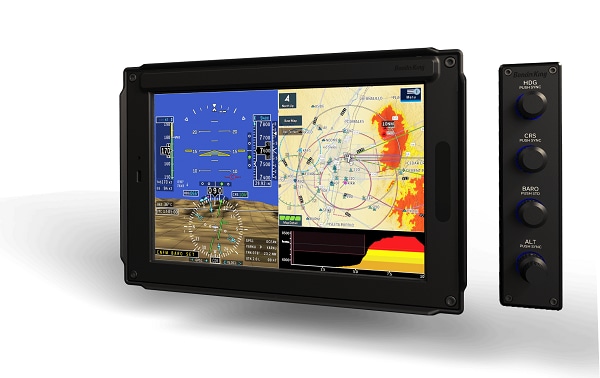

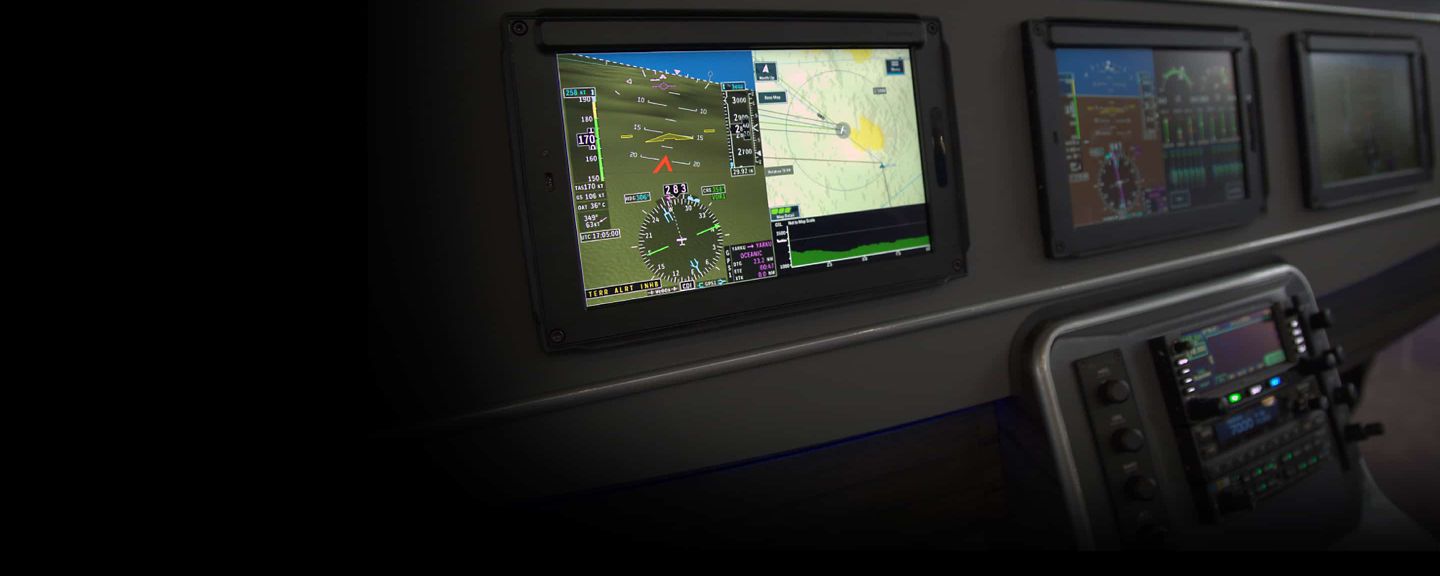

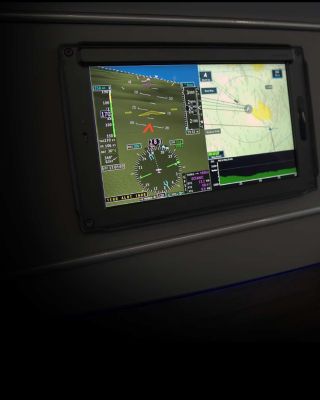

AeroVue Touch can be installed as a primary flight display in a new certified aircraft or as a replacement for outdated steam gauges in an existing aircraft. The 10.1” display provides the highest screen resolution in the industry. The display can be used as full screen primary flight display or a split screen primary and multifunction display.

  • Standard with all flight indicators
  • Industry-leading SmartView synthetic vision,
  • Vertical situation display that shows flight path over terrain,
  • ADS-B In weather and traffic.

It includes free software upgrades coming soon to include engine instrument display and radio and autopilot control. AeroVue Touch integrates seamlessly with BendixKing KSN, Garmin GTN/GNS, and Avidyne IFD navigators, saving the cost of replacing a navigator.

SUPERIOR CRAFTMANSHIP

Our industrial designers imagined and realized the AeroVue Touch delivering improved comfort & ease of use. With no cooling fan, AeroVue is quiet and has no moving parts to break. An ergonomic grip around the display makes it easy to access functions on screen even in turbulence. The separate controller gives you options to mount it anywhere on the panel you would like. The highest quality materials have been incorporated into the design by Honeywell experts, drawing from our programs like the F-16 avionics. Years of extensive in-lab and flight tests have been conducted to ensure superior quality, reliability & safety.

FAST, SIMPLE, POWERFUL

AeroVue Touch comes with built-in Wi-Fi that allows you to upload databases within 4 minutes, and software updates in less than 10 minutes.

Cutting edge touch technology provides high touch accuracy. The display and menu structure have been streamlined and simplified so that all critical functions can be reached in 2 touches or less.

The 10.1 inch high resolution screen provides 16.7 million colors with 1000 nits of luminescence and a 800:1contrast ratio. The high quality coated glass provides 92% light transmissivity, and is anti-glare, anti-smudge, and anti-scratch. All of this provides you with a sharp, bright screen, easily readable in daylight.

STANDARD FEATURES

  • Three high-resolution 12” LCD displays
  • Two Primary Flight Displays (PFD) and one Multifunction Display (MFD)
  • Interactive graphical flight planning
  • Flight management system with flight director, coupled VNAV capability
  • Dual WAAS GPS receivers
  • Integrated digital autopilot with yaw damper
  • Integrated engine instrumentation on the PFDs
  • Dual-channel Air Data and Attitude Heading Reference System (ADAHRS)
  • Software-based multi-mode digital radios for navigation and communication
  • ADS-B compliant Mode S transponder
  • Trackball cursor control device with integrated hand rest
  • Keyboard, numeric keypad and joystick
  • DME
  • Track-centered flight display for more precise flying
  • Dual audio panels with Bluetooth® and readback functionality
  • Digital standby attitude module with airspeed, altitude and slip indication
  • Interfaces with many legacy BendixKing sensors, including TCAS, EGPWS
  • Full 2-year system warranty
MAIN PRODUCT SPECIFICATIONS
Specifications Primary Flight D. Control Panel Magnetometer ADAHRS OAT
Dimensions 6.987 x 10.45 x 4.08 (175.18 x 265.43 x 103.63 mm) 1.48 x 6.25 x 3.67 in. (37.6 x 158.8 x 93.2 mm) 3.70 x 5.83 x 1.33 in. (93.98 x 148.08 x 37.78 mm) 8.65 x 5.1 x 1.4 in. (219.72 x 129.43 x 35.56 mm) 1.65 x 1.75 x 1.00 in. (41.91 x 44.45 x 25.4 mm)
Weight 7.59 lbs. (3.44 kg) 1.05 lbs. (0.47 kg) 0.90 lbs. (0.41 kg) 2.17 lbs. (0.98 kg) 0.15 lbs. (0.07 kg)
Mounting Front mount Front mount N/A N/A N/A
Current Draw 1.33 AMP for 28 VDC | 2.66 AMP for 14 VDC powered from flight display, current draw, included with flight display Current draw (at 27.5 VDC)
- 80 mA Nominal, 25oC, after 2 minute warmup
- 200 mA Nominal, -55oC, after 2 minute warmup
- 700 mA Maximum, -55oC
0.2 AMP for 28 VDC | 0.4 AMP for 14 VDC none, no interface to aircraft power
Operating Voltage 9.0 to 30.3 VDC provided by flight display 9.0 to 30.3 VDC 9.0 to 30.3 VDC none, connected to ADAHRS
Circuit breaker 2 AMP for 28 VDC, 3 AMP for 14 VDC none, uses circuit breaker for flight display 1 AMP for 28 VDC, 2 AMP for 14 VDC 2 AMP for 28 VDC, 3 AMP for 14 VDC none
Cooling convection cooled (no fan) convection cooled (no fan) convection cooled (no fan) convection cooled (no fan) no cooling required
Conectors 1 female 78-pin and 1 male 78-pin male 9-pin D-sub female 9-pin male 50-pin and female 9-pin (maintenace port) 5 ft. 3-conductor shielded wire lead, spliced into wiring harness

OTHER SPECIFICATIONS

Primary Flight Display

  • Viewing angle envelope: 80° from all directions

Magnetometer

  • Temperature: -55 ° C to +70° C
  • Altitude: 55,000 ft.
  • Signal inputs/outputs: Serial CAN bus
